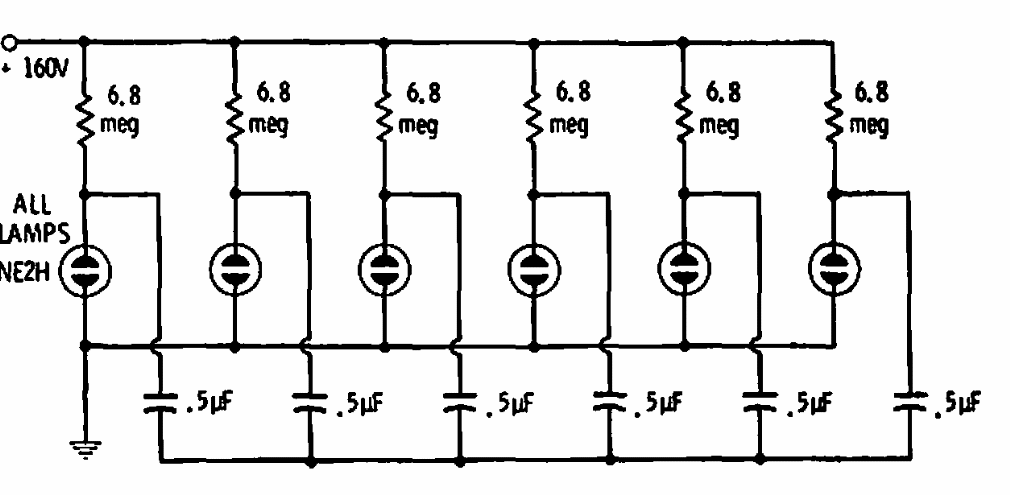

Random neon (CB7082E)

This circuit causes the neon lamps in a set to flash randomly. Capacitors determine the speed of blinks. The supply must be made with high voltage.

| Clique na imagem para ampliar |
