MOSFETs bias (CB6962E)

Details
Written by: Newton C. Braga

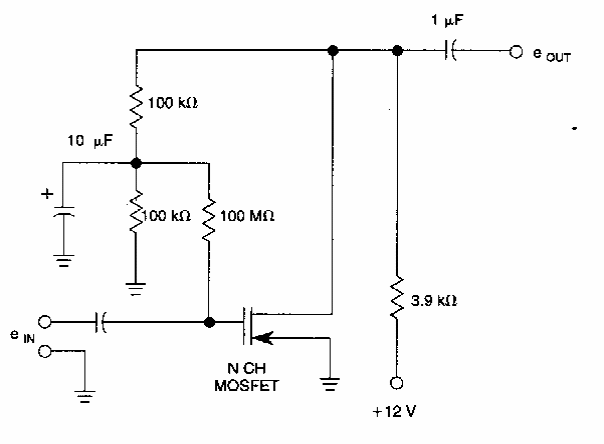

    In the figure we have a typical polarization circuit for MOSFETs with a high impedance characteristic. The circuit applies to almost any signal MOSFET.
