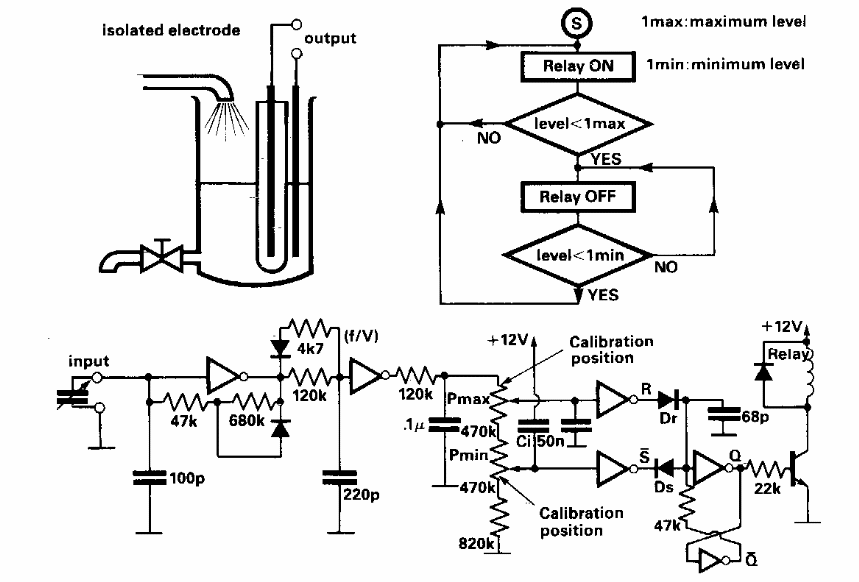

Using only one integrated circuit this control was found in an 80's Electronic Engineering. The circuit has the drive's logic information and must be powered by an isolated power source.
| Clique na imagem para ampliar |
Single Pump Control (CB6272E)
- Details
- Written by: Newton C. Braga
