FET Follower (CB6132E)

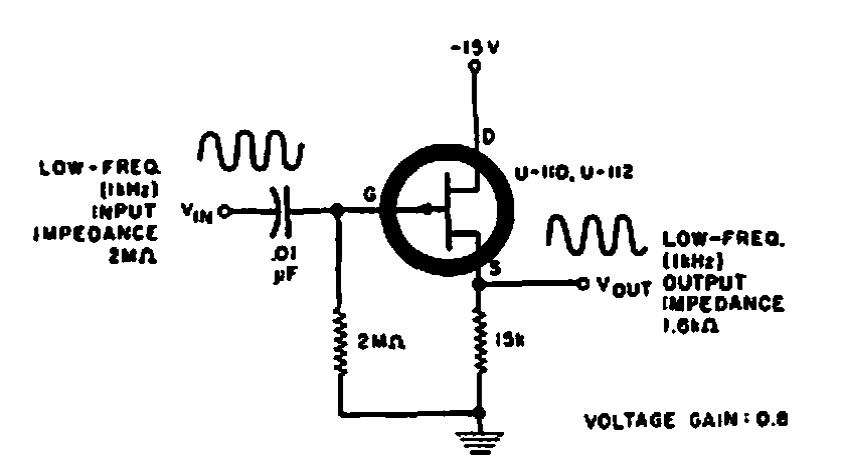

This 1967 Electronics World circuit is suitable for frequencies up to 1 MHz. The setting applies to virtually any junction FET.

| Clique na imagem para ampliar |
