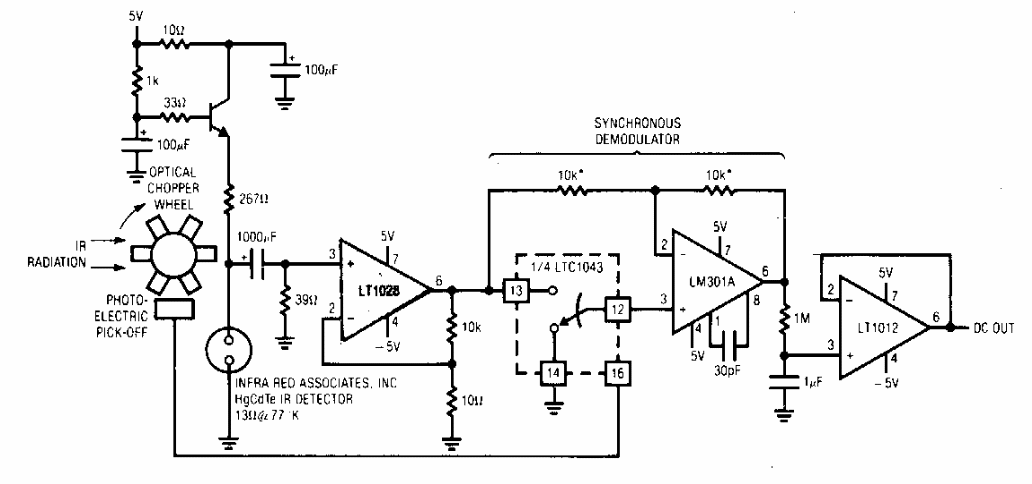

We found this circuit in a Linear Technology documentation from the 80's. It has a demodulator, being suitable for links and remote controls. Note the unusual type of detector configuration.
| Clique na imagem para ampliar |
Low Noise Infrared Detector (CB6369E)
- Details
- Written by: Newton C. Braga
