3 transistors metronome (CB7146E)

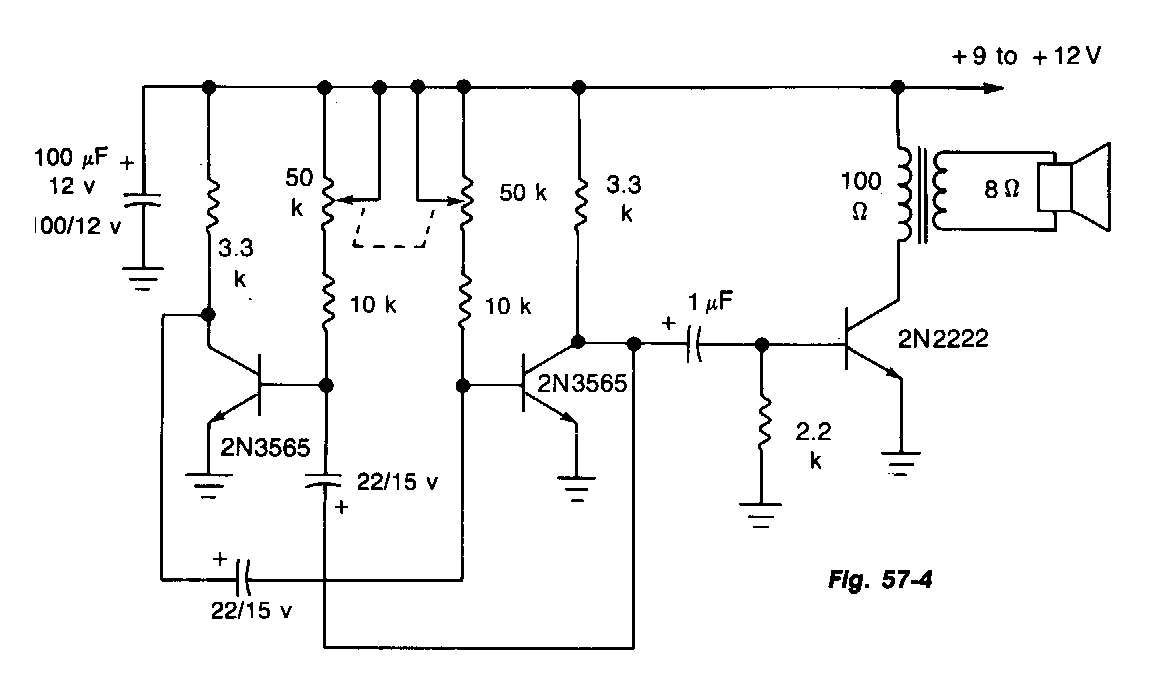

Found in 1980s documentation, this circuit uses a small transistor radio output transformer and a double potentiometer for frequency adjustment.

| Clique na imagem para ampliar |
