Composite amplifier (CB6781E)

Details
Written by: Newton C. Braga

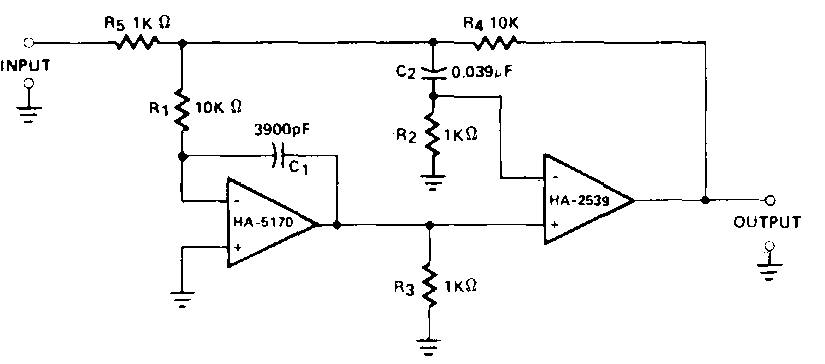

     This amplifier was obtained in a Harris documentation from the 90s. The circuit is high speed with a gain product x 300 MHz pass band.
