Or exclusive with transistors (CB7252E)

Details
Written by: Newton C. Braga

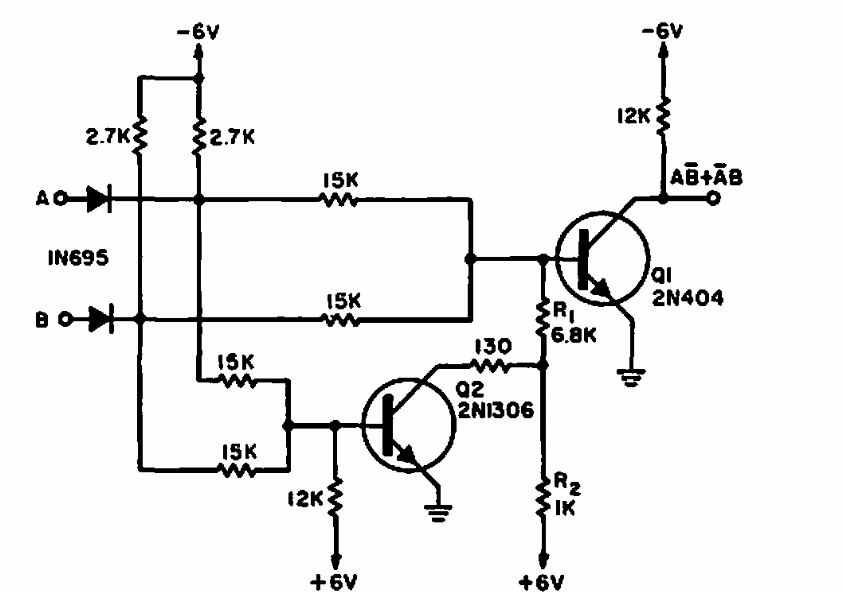

     This circuit was obtained in a 1964 Electronic Design. Equivalent modern transistors can be used. The circuit requires a 6 V symmetrical power supply.




| Clique na imagem para ampliar |
