Voice Operated Relay (T302E)

Details
Written by: Newton C. Braga

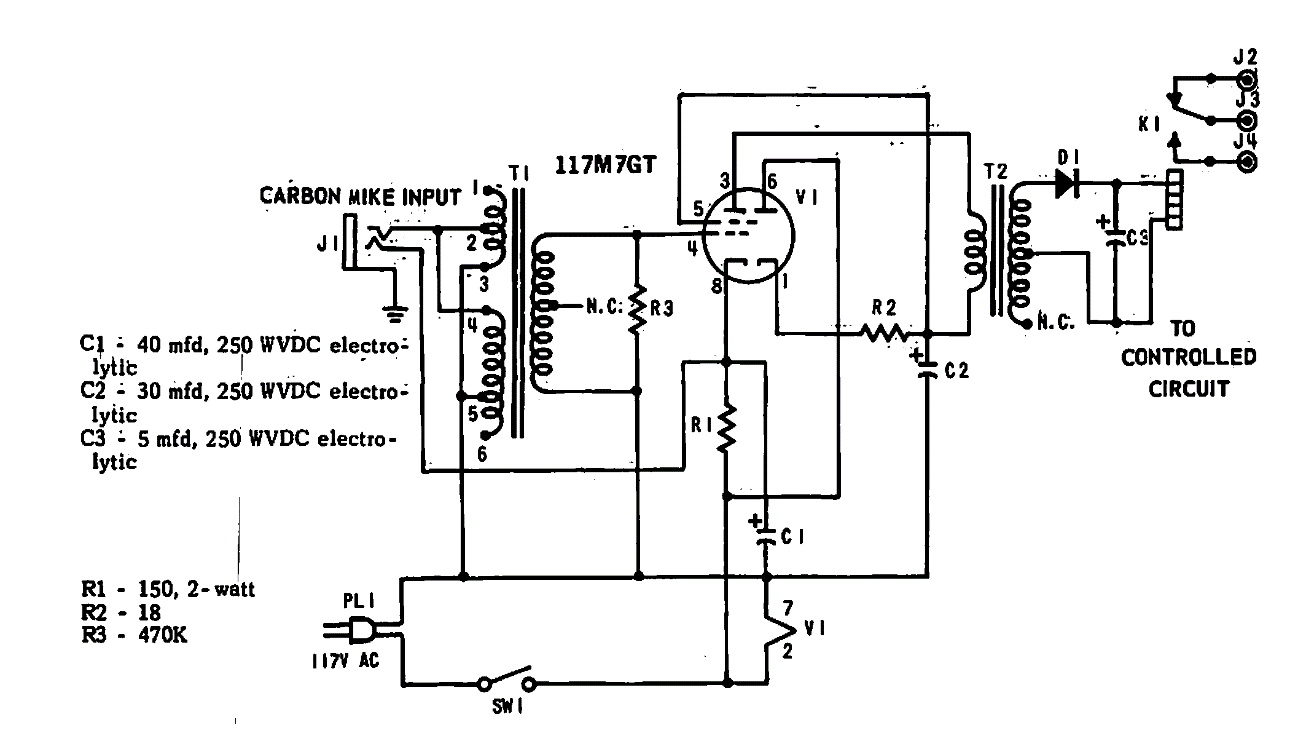

    This 1969 circuit uses a 117 V filament tube powered directly by the power grid. The original circuit makes use of a charcoal microphone, a common component at the time.
