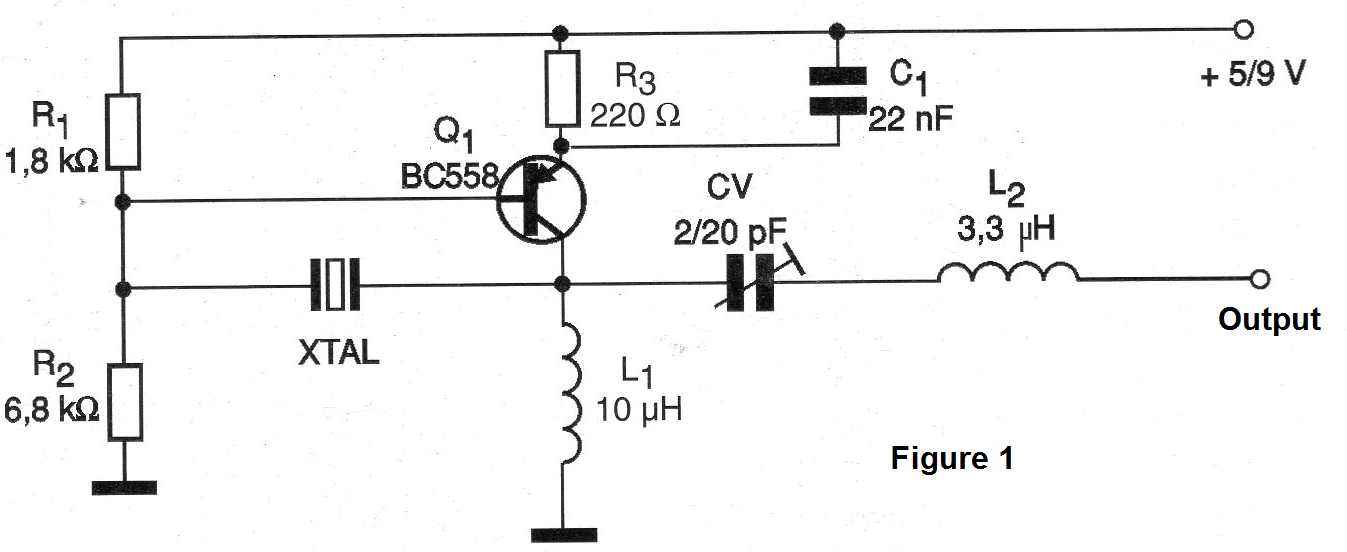

The oscillator shown in figure 1 uses a crystal for the (11 meter band or CB) amateur band, and is based on a general purpose PNP transistor.
The adjustment of the ideal oscillation point is obtained by a trimmer (CV). The capacitor C1 must be ceramic and the inductors can be both microchoke and home-made.
In figure 2 we give a suggestion of printed circuit board for the assembly of this oscillator.
23
We note that the links should be short.
Material list
Q1 - BC558 - general purpose PNP transistor
CV - trimmer 2-20 pF or near this range of values
L1 - 10 uH - microchoke
L2 - 3.3 uH - microchoke
R1 - 1.8 k ohms x 1/8 W - resistor - brown, gray, red
R2 - 6.8 k ohms x 1/8 W - resistor - blue, gray, red
R3 - 220 ohms x 1/8 W - resistor - red, red, brown
C1 - 22 nF - ceramic capacitor
XTAL - Crystal for the 27 MHz band
Several:
Printed circuit board, wires, solder, etc.
