Tetrode FET amplifier (CB7098E)

Details
Written by: Newton C. Braga

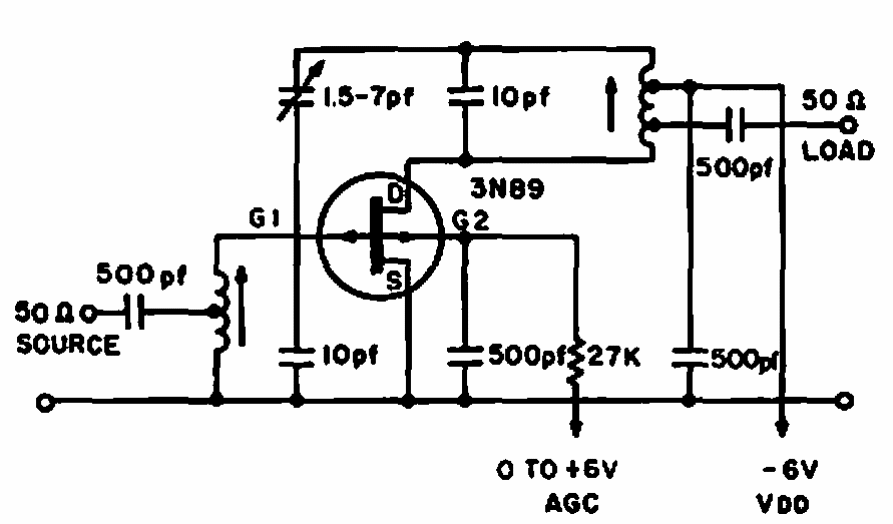

     Suggested by a 1965 Electronic Design, this circuit has a gain of 15 dB at 45 MHz and can be changed to operate on other frequencies. The tetrode FET is an uncommon component today.






| Clique na imagem para ampliar |
