Code Switch (CB6535E)

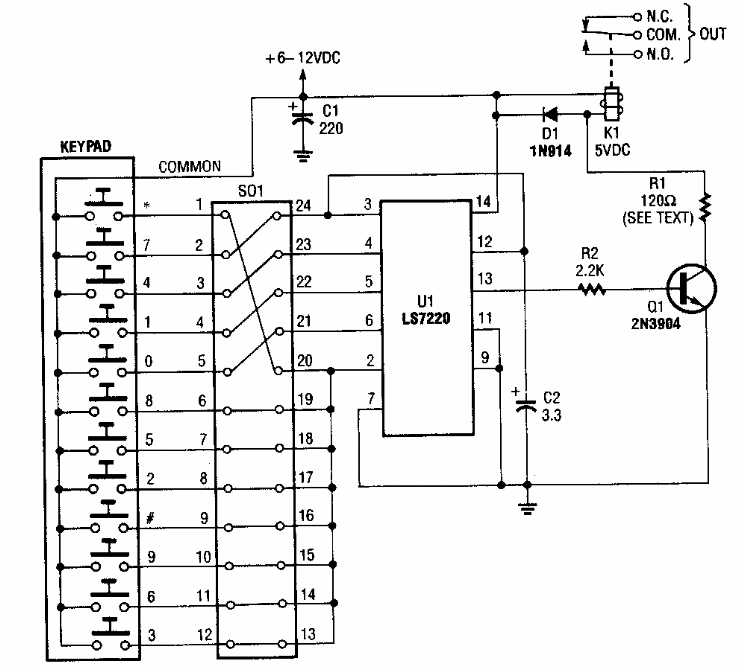

Found on 80's Popular Electronics, this circuit uses an uncommon integrated today. Programming is done by a DIP switch.

| Clique na imagem para ampliar |

Reminder (CB9548E)
This circuit maintains on a flashing LED at a frequency determined by the capacitor. The...
Controlled Photo Timer (CB18731E)
After starting, this circuit turns off the relay in a time that depends on the 4020 pulse-count. This...
Sine Inverter 100 W x 60 Hz (CB20079E)
This sophisticated circuit is from a 1975 documentation. The components are from the time and the...
