Proximity Switch (CB6445E)

Details
Written by: Newton C. Braga

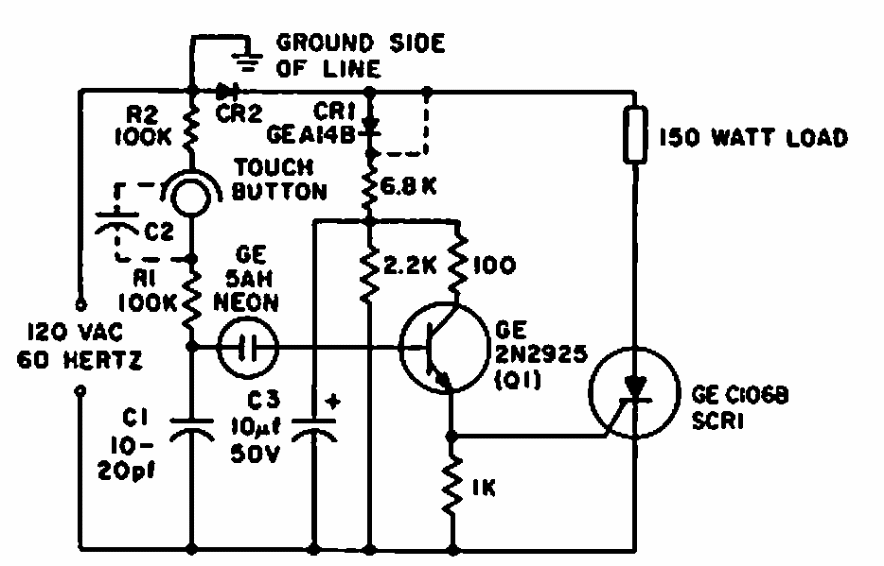

     This circuit was obtained from a 1967 General Electric manual. The circuit uses components of the time, but equivalents can be used, for example, a BC547 for the transistor and a TIC106 for the SCR.




| Clique na imagem para ampliar |
