20 A TTL Shield (CB7253E)

Details
Written by: Newton C. Braga

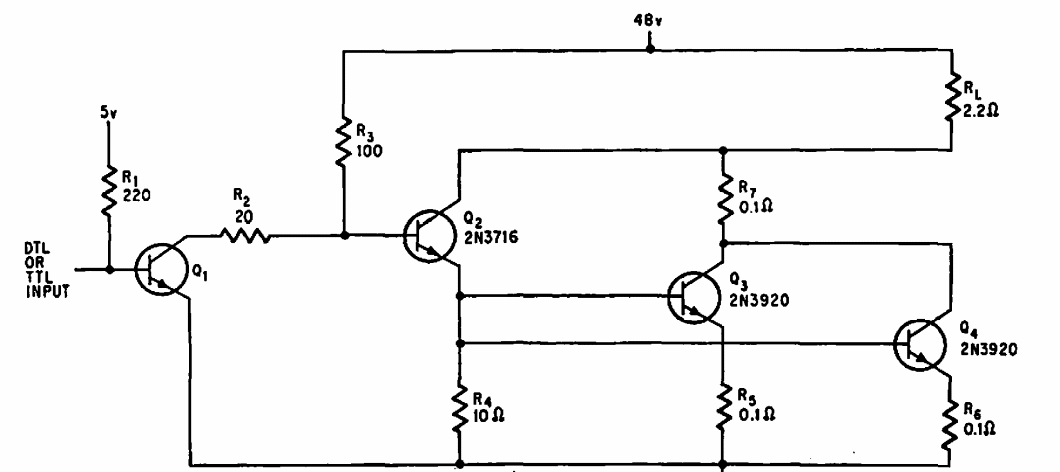

    This circuit is from an old American publication, using transistors of the time and operating with a 48 V power source. The load is 2.2 ohm, and the transistors must be replaced by modern equivalents.




| Clique na imagem para ampliar |
