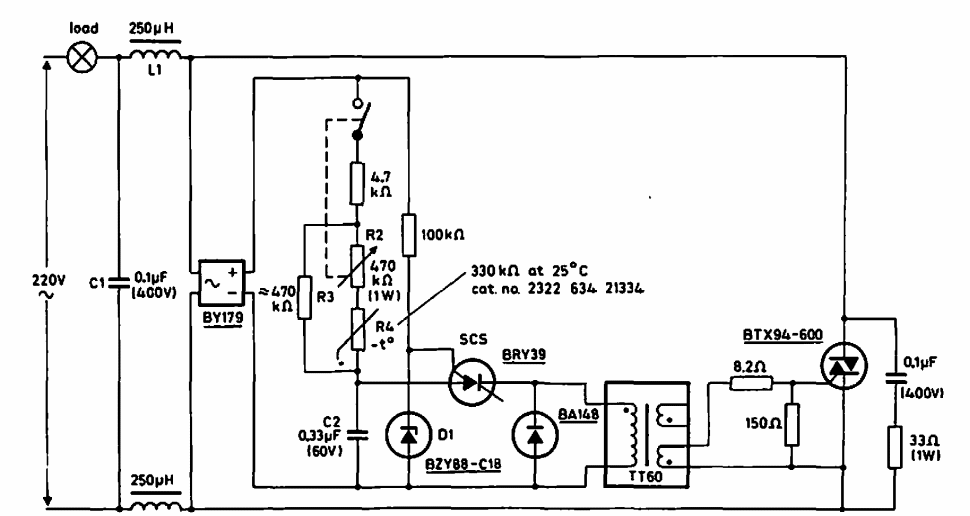

3,000 W Dimmer (CB7207E)

Suggested by Philips in a 1970 publication, this circuit uses components from that time. No information is given about the trip transformer.

| Clique na imagem para ampliar |
