Analog frequency meter (CB6906E)

Details
Written by: Newton C. Braga

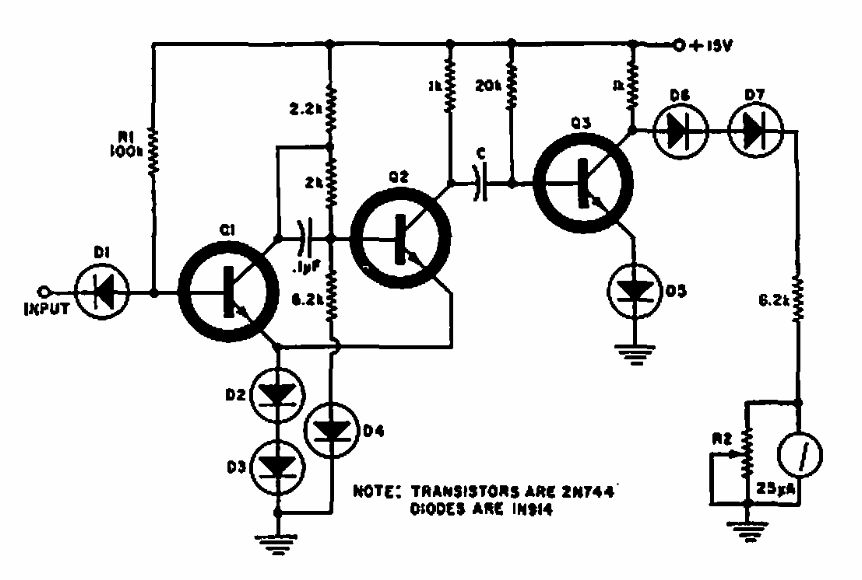

     This circuit is from a 1969 Electronics World. The transistors may be modern general-purpose equivalents. The circuit is for frequency ranges between 250 Hz and 250 kHz.




| Clique na imagem para ampliar |
