Car audio booster (CB7253E)

Details
Written by: Newton C. Braga

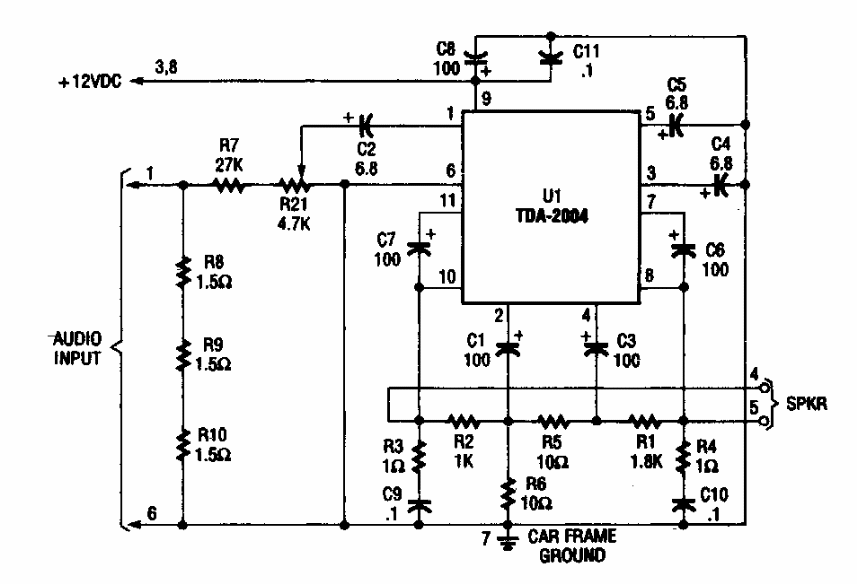

     Found in a 1990 Hobbyst Handbook this circuit has an output power of a few tens of watts and serves as reinforced for the car's sound. The speaker can be 2 or 4 ohm.
