Radiation thermometer (CB7242E)

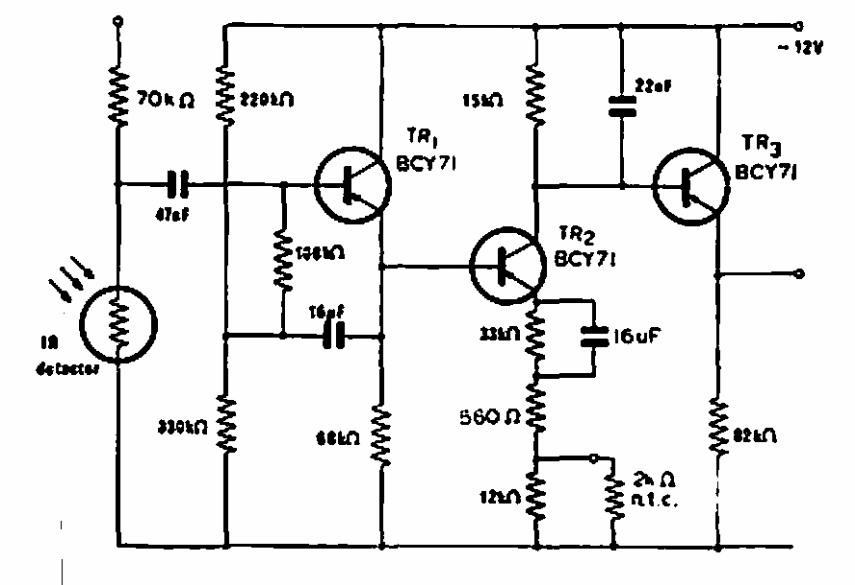

Found in a 1968 Mullard manual, this circuit measures temperature by infrared radiation. The sensor is of the type that is difficult to obtain today.
