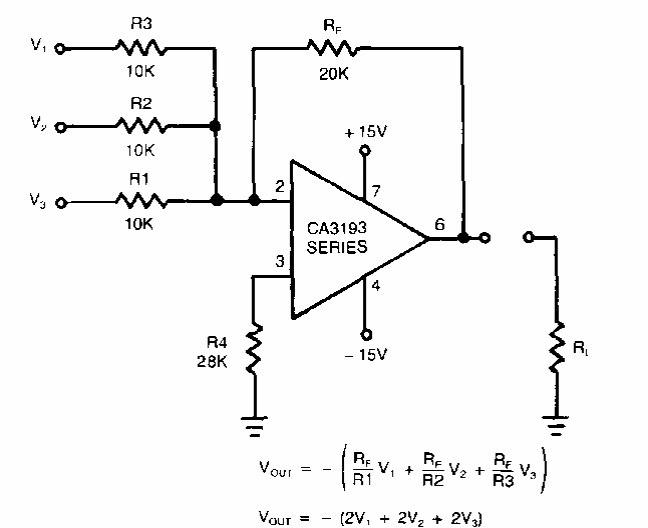

Summing amplifier (CB6786E)

Details
Written by: Newton C. Braga



     This RCA / GE circuit from the 90s can be applied to any modern operational amplifier. The number of entries (installments) can be changed depending on the application.
