Binary Neon (CB6806E)

Details
Written by: Newton C. Braga

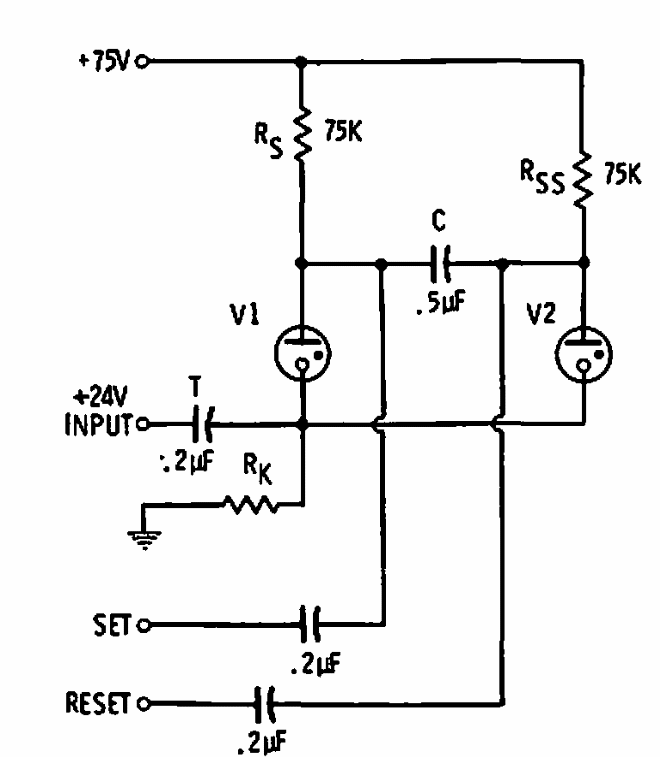

     This flip-flop with neon lamps was found in a 1969 publication that deals precisely with neon lamps. Observe the high supply voltage.
