Negative Resistance (CB6555E)

Details
Written by: Newton C. Braga

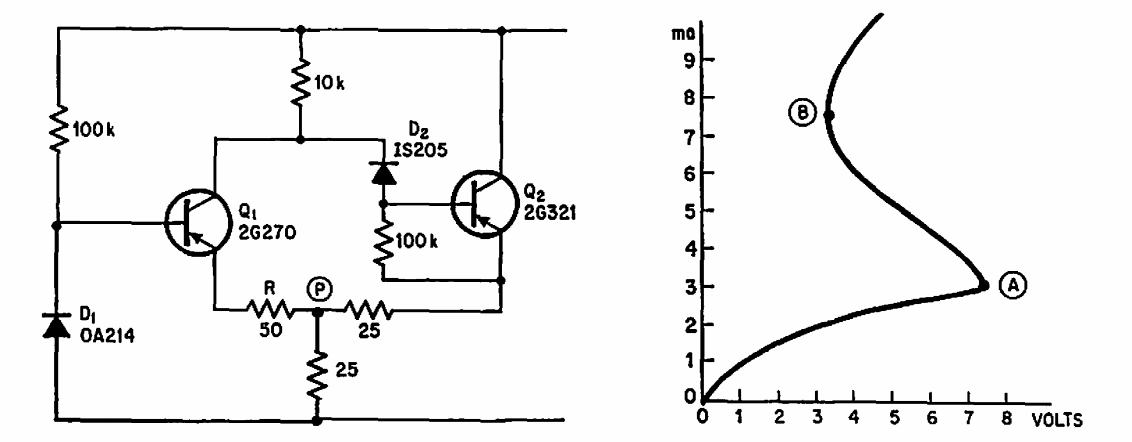

    This negative resistance circuit was obtained from a 1969’s American documentation. It can be made from modern components. See the characteristic obtained.
