Invisible rifle pulse LASER (CB6372E)

Details
Written by: Newton C. Braga

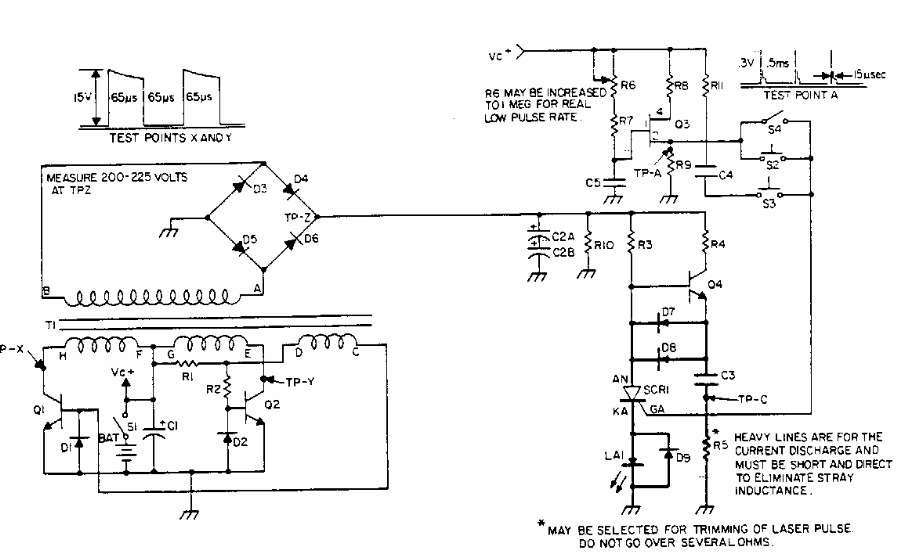

     Found in an American 1980s documentation, this circuit generates high-intensity pulses for a high-voltage laser. The circuit produces 200 to 300 V pulses for excitation of a gas laser.
