Sound Operated Switch (CB6315E)

Details
Written by: Newton C. Braga

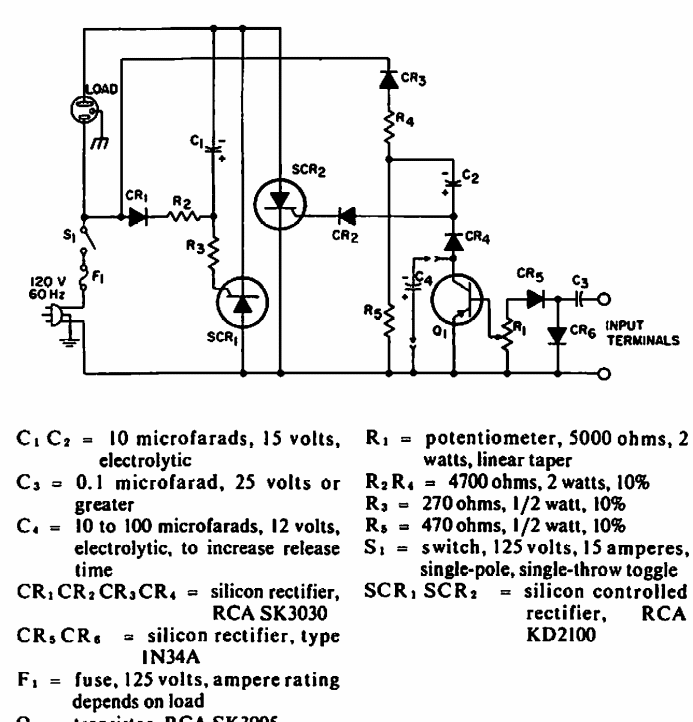

     This sound relay or Vox was found in 70s RCA documentation. SCRs can be common types today and transistor a BC558. The circuit is for the 110V power grid.
