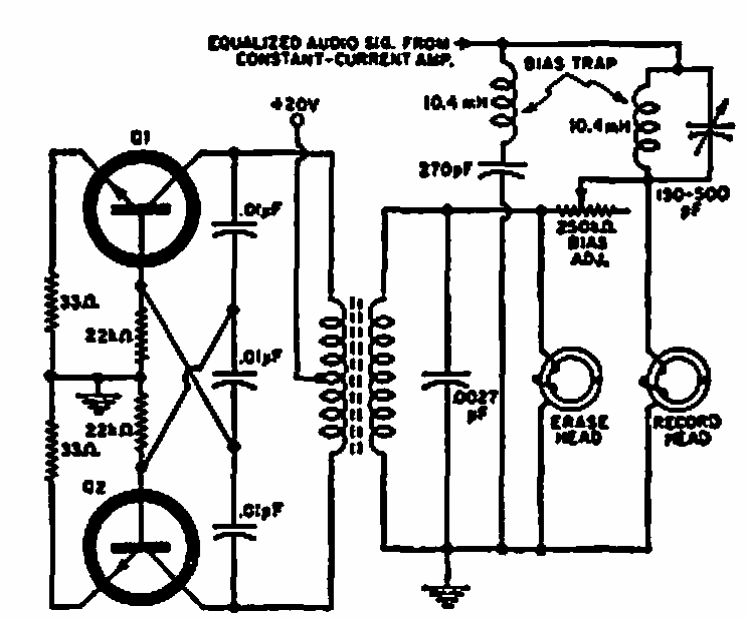

Bias oscillator for tape recorders (CB7339E)

Details
Written by: Newton C. Braga



     This circuit was found in a 1967 Electronics World. The circuit uses components of the time that are difficult to obtain, such as the transformer.
