15 kHz inverter from 60 Hz (CB7296E)

Details
Written by: Newton C. Braga

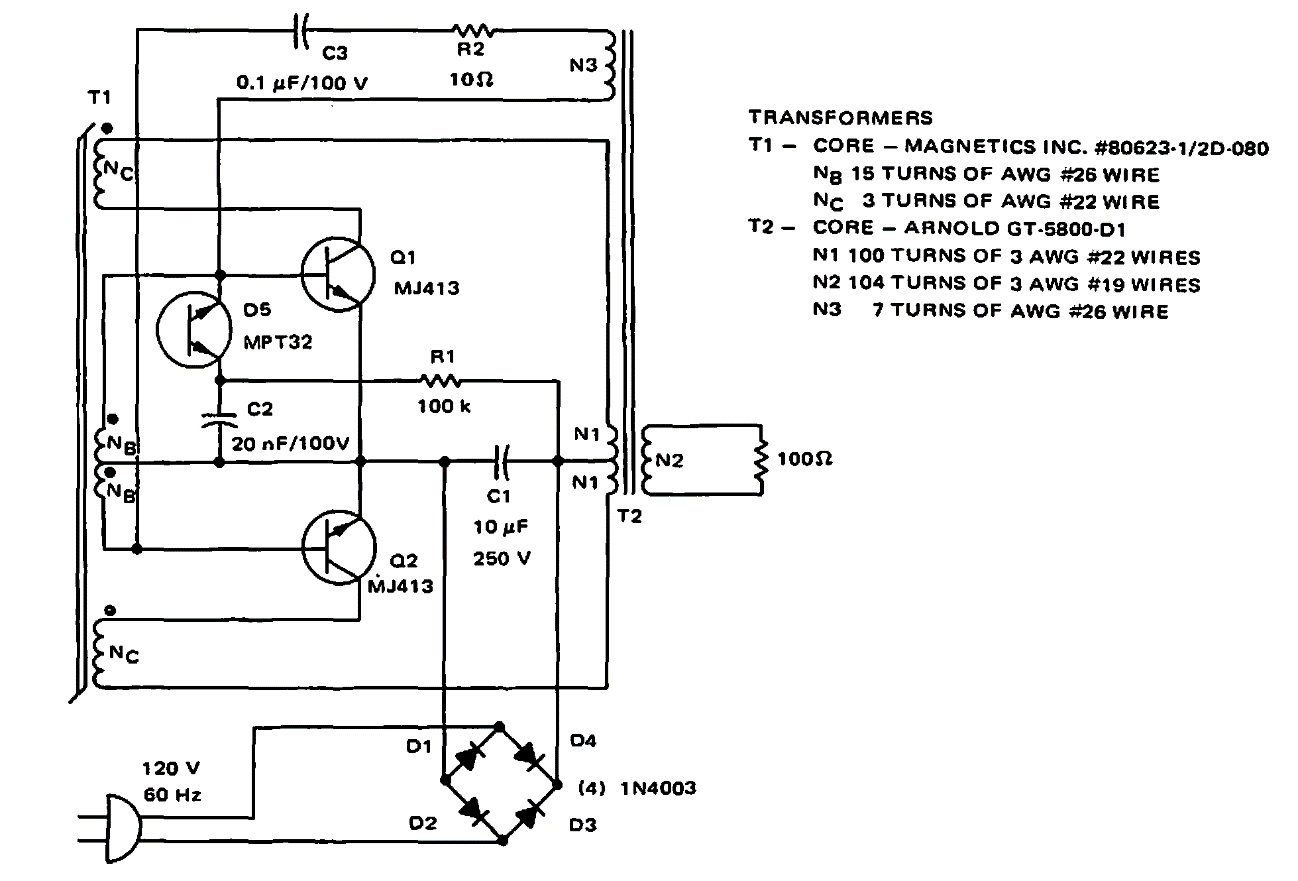

     This circuit was found in a Motorola manual from 1968. As it can be obtained 20 V at 15 kHz from 120 V x 60 Hz. The components are of the time.




| Clique na imagem para ampliar |
