Full wave dimmer (CB7208E)

Details
Written by: Newton C. Braga

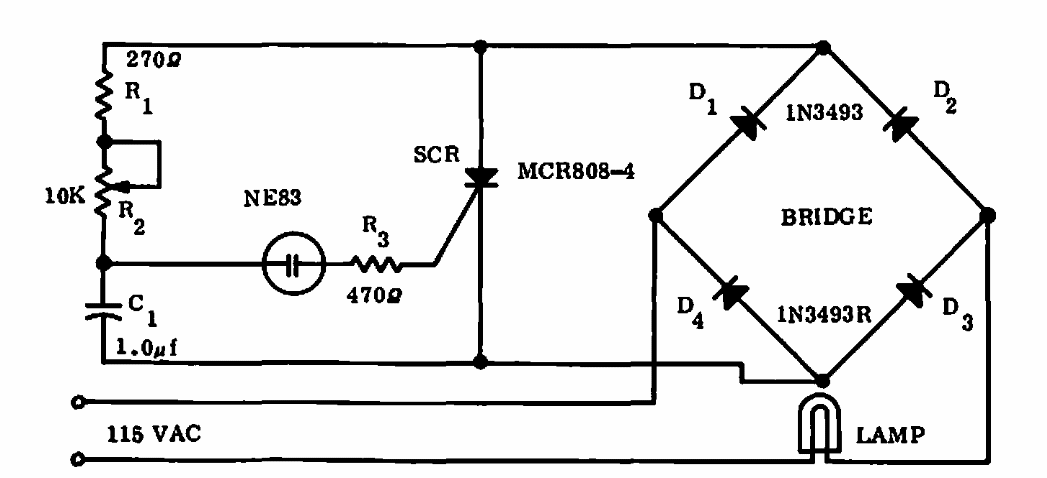

     Found in Motorola's 1965 manual, this full-wave dimmer controls a load that depends on the used SCR. The trigger element is a neon lamp.






| Clique na imagem para ampliar |
