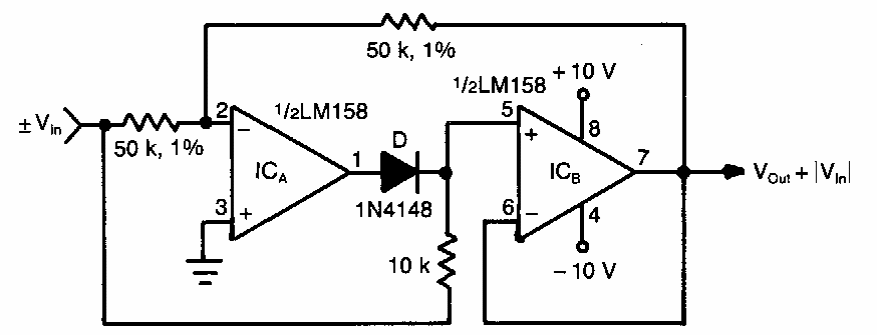

Found in an old Electronic Design, this circuit provides an output voltage that is the absolute value of the input voltage, that is, regardless of its signal. The circuit admits modern operational equivalents.
| Clique na imagem para ampliar |
Absolute Value Circuit (CB7070E)
- Details
- Written by: Newton C. Braga
