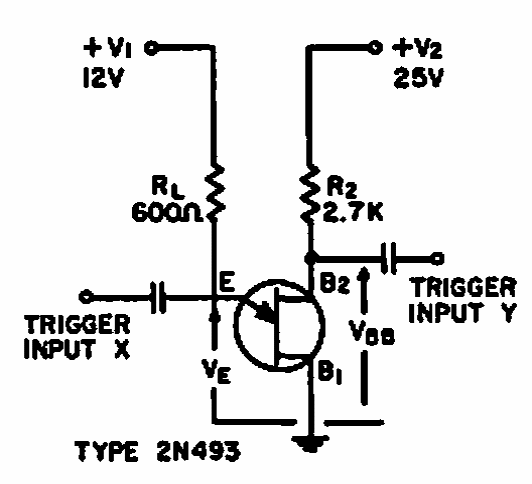

Obtained in documentation from General Electric this circuit consists of a biestable with unijunction. Observe the two supply voltages. The circuit is suitable for applications with oscilloscopes of the time.
Biestable unijunction (CB6807E)
- Details
- Written by: Newton C. Braga
