Avalanche Divider (CB6834E)

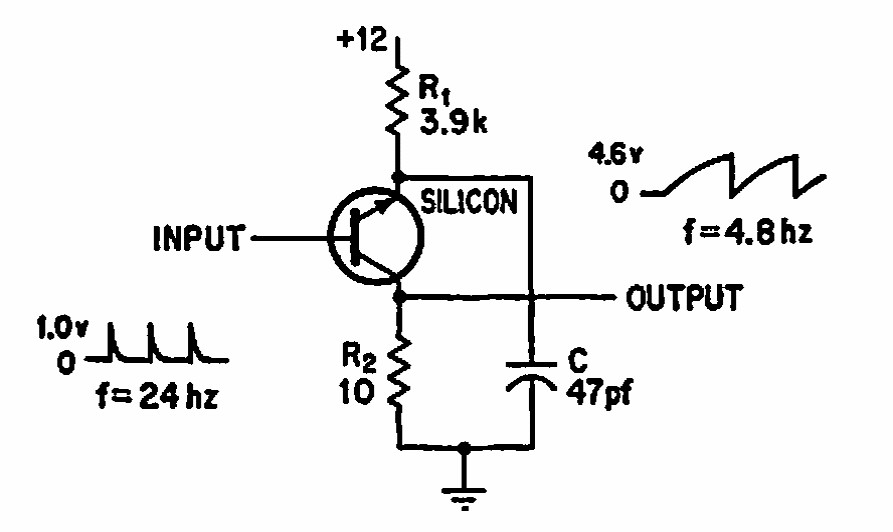

We found this circuit in an American documentation from 1969. The circuit works with the polarized transistor in reverse in the avalanche mode.
