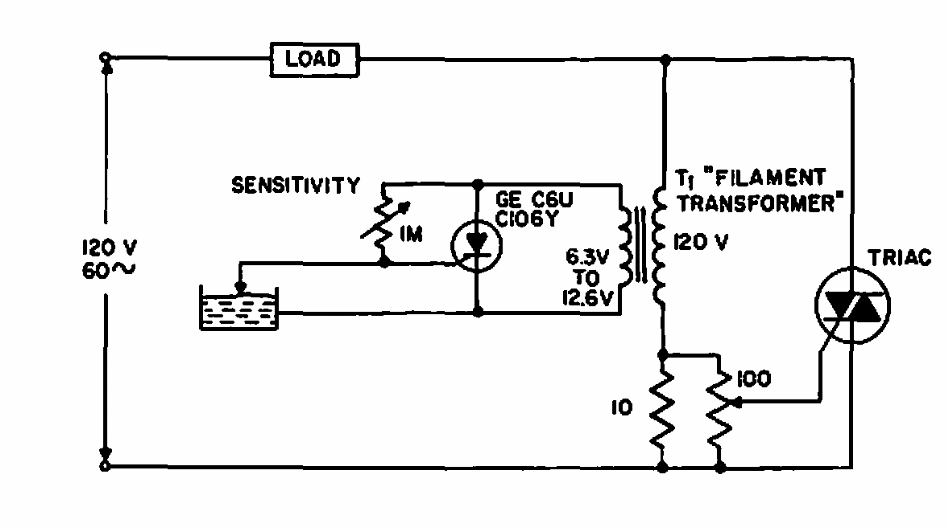

Water Level Sensor (CB6557E)

This grid-isolated sensor was proposed by General Electric in 1966 documentation. The circuit currently uses common components.

| Clique na imagem para ampliar |
