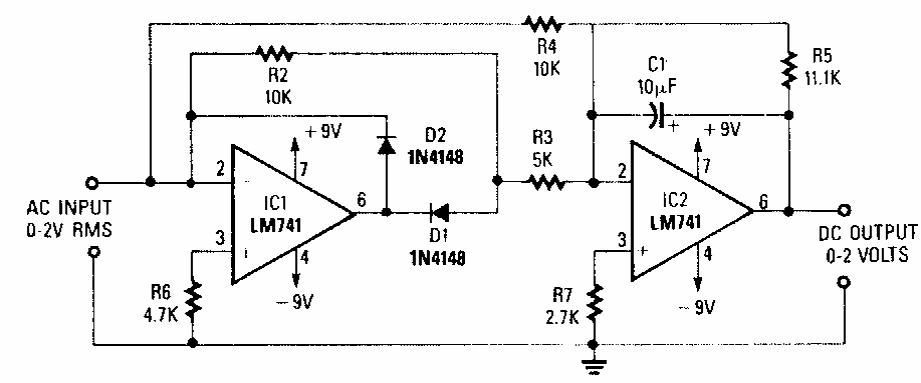

This full-wave precision circuit was obtained from a 90's Radio Electronics. The circuit must be powered by symmetrical power source and if the signal is sinusoidal R1 / C1 determines the gain.
| Clique na imagem para ampliar |
Precision AC to DC Converter (CB6503E)
- Details
- Written by: Newton C. Braga
