Moving scale DC voltmeter (CB7341E)

Details
Written by: Newton C. Braga

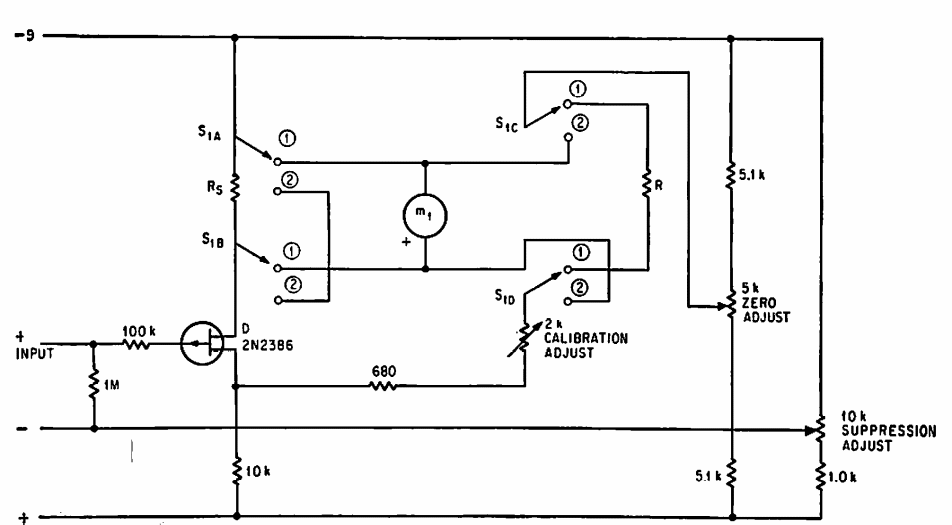

     This circuit was found in an American publication in 1966. The circuit uses a general-purpose FET that admits an equivalent. The instrument is a 250 uA full-scale microammeter.
