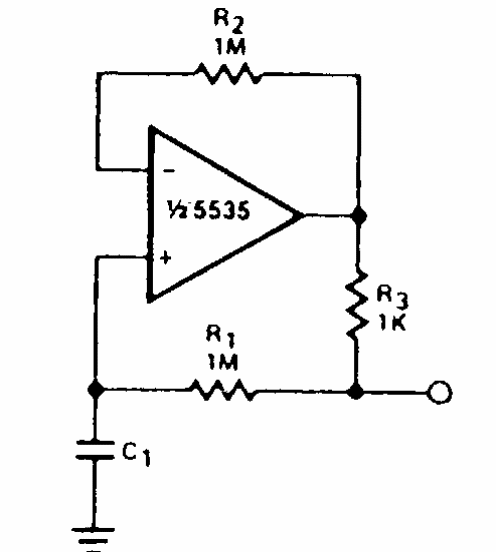

We found this circuit in an old Signetics documentation. The integrated circuit is of the time, but the setting is true for modern operational. The circuit multiplies the capacitance of C1 by 1000.
Capacitance Multiplier (CB6228E)
- Details
- Written by: Newton C. Braga
