This interesting circuit that generates delayed pulses was found in the September 1992 issue of Radio Electronics magazine. The timings can be changed by choosing appropriate values of C1, C4 and C7.
| Clique na imagem para ampliar |

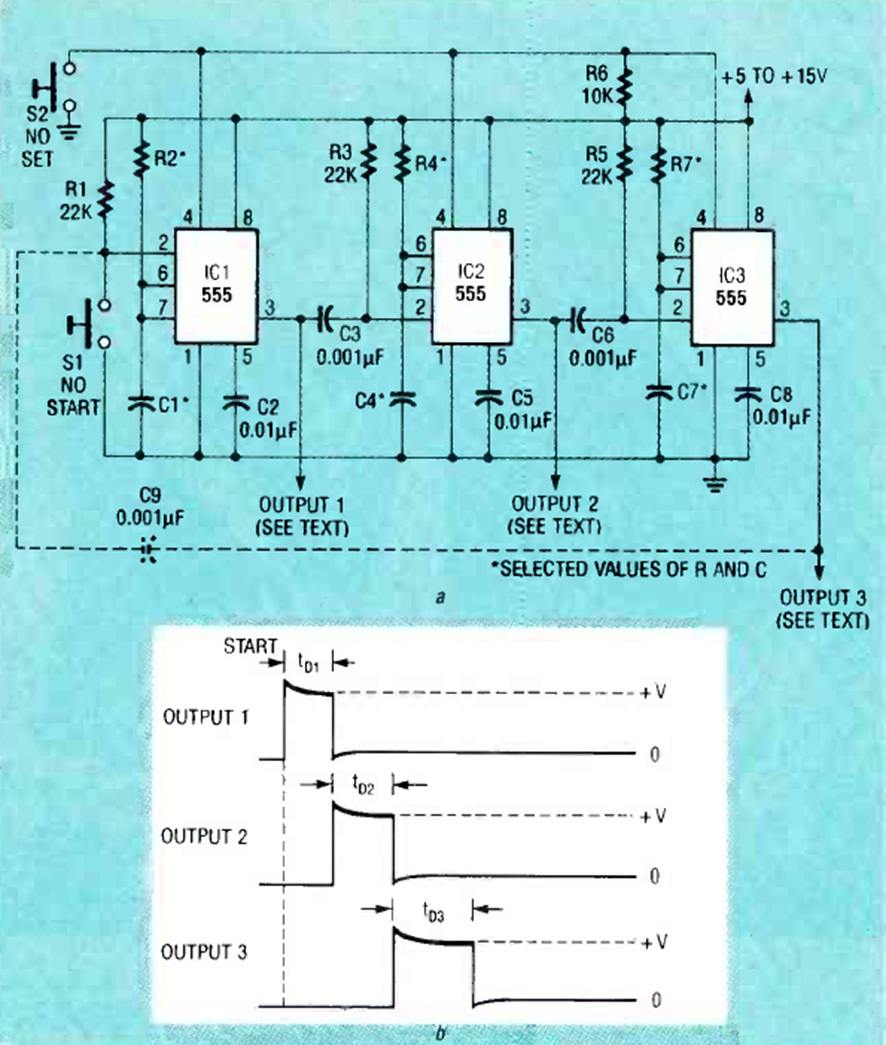

3-Stage Sequential 555 (CB25508E)
- Details
- Written by: Newton C. Braga
