Tape Recorder Motor Control (CB25365E)

Details
Written by: Newton C. Braga

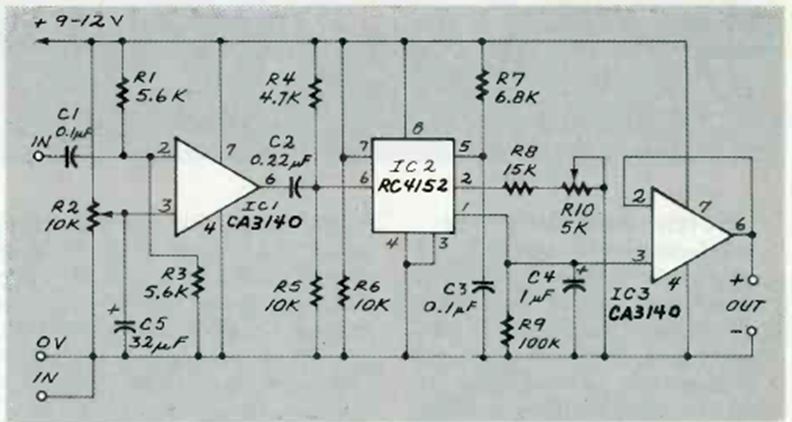

This cassette player motor speed control was found in the January 1991 issue of Radio Electronics magazine. The circuit is for voltages from 9 to 12 V.




| Clique na imagem para ampliar |
