PIC Remote control (CB25790E)

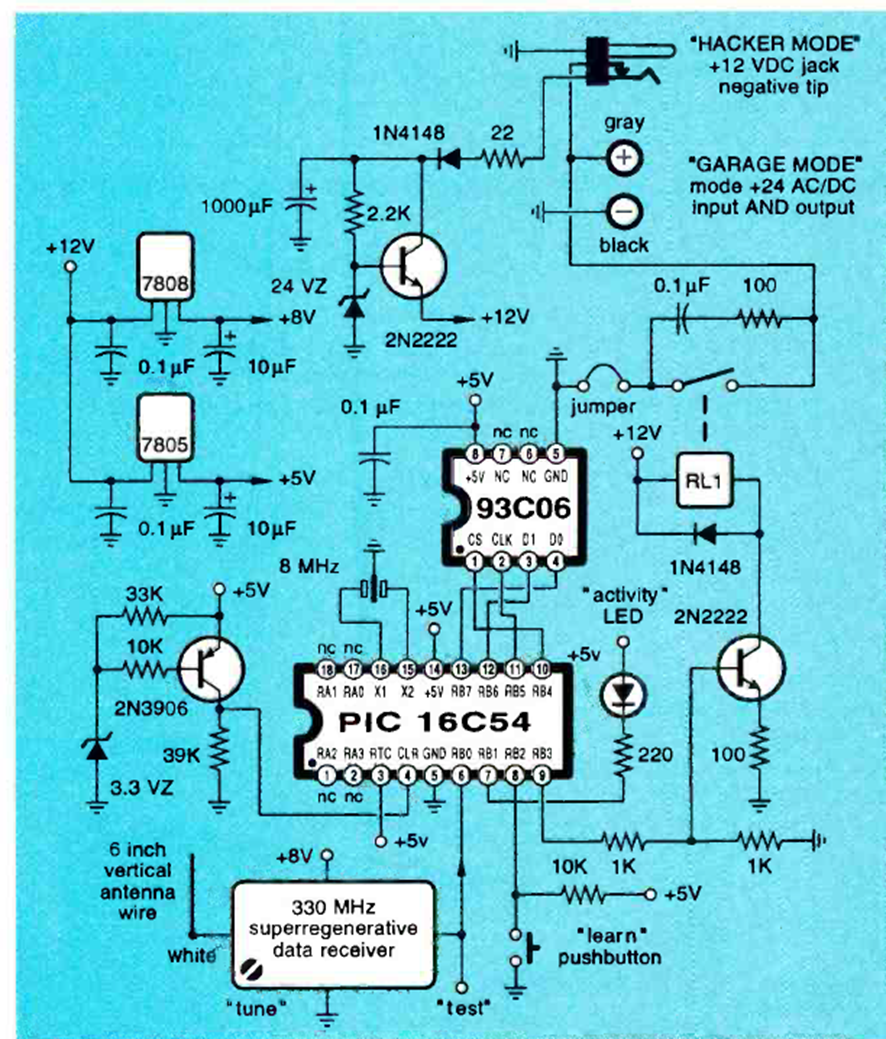

We found this circuit for 330 MHz using PIC in the magazine Electronics Now of December 1994. The circuit uses components common at the time.

| Clique na imagem para ampliar |
