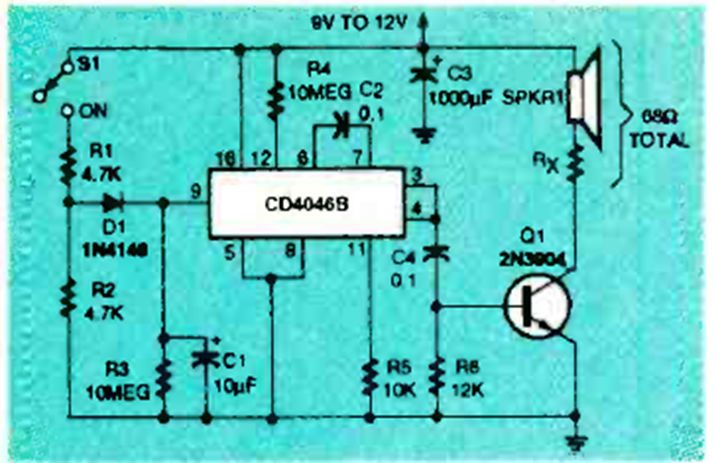

Quick Start Siren (CB25765E)

We found this circuit in the October 1994 Electronics Now magazine. The CMOS IC is uncommon these days and the output is low power.
