Digital inverter with transistor (CB25625E)
- Details
- Written by: Newton C. Braga

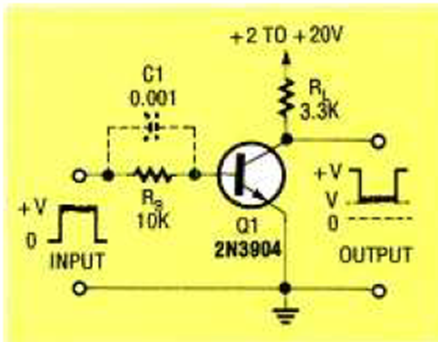

In the figure we have the simple way to obtain a digital inverter using a general-purpose transistor. The collector power supply determines the output logic.
