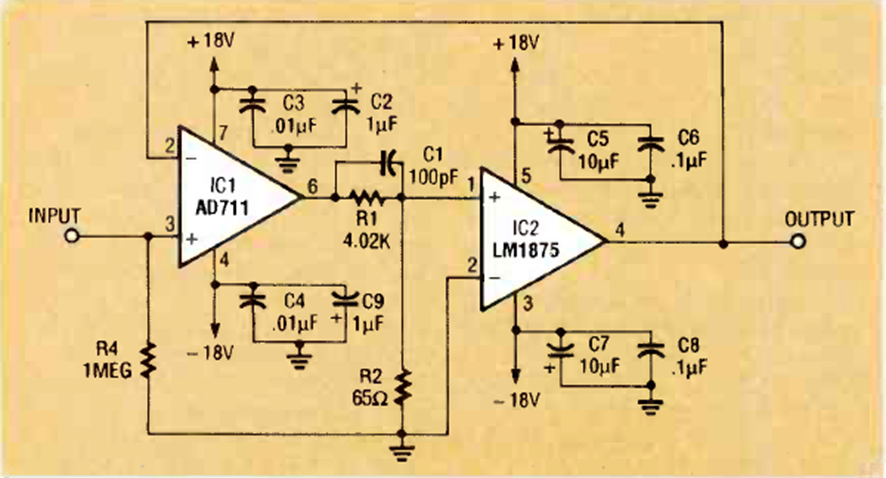

Unlike the previous circuit, which is an inverter type, this one is non-inverting. The circuit requires a symmetrical power supply and was found in a Radio Electronics magazine from November 1992.
| Clique na imagem para ampliar |
10W Non-Inverting Amplifier LM18675 (CB25524E)
- Details
- Written by: Newton C. Braga
