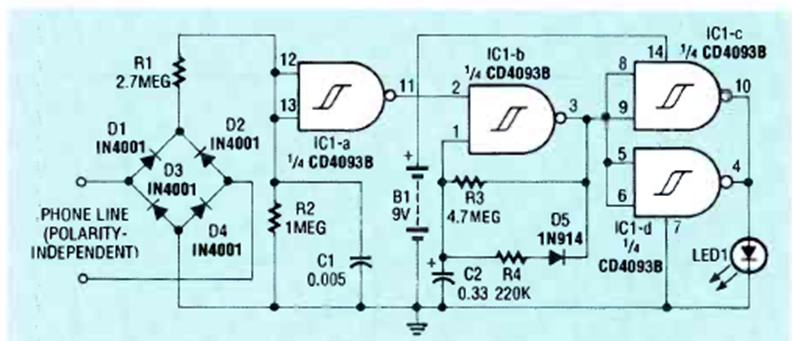

Telephone switchboard (CB25400E)

This circuit monitors an old-style analog telephone line. We found it in the September 1991 issue of Radio Electronics magazine.

| Clique na imagem para ampliar |
