Timer up to 100 minutes (CB25747E)

Details: Written by: Newton C. Braga

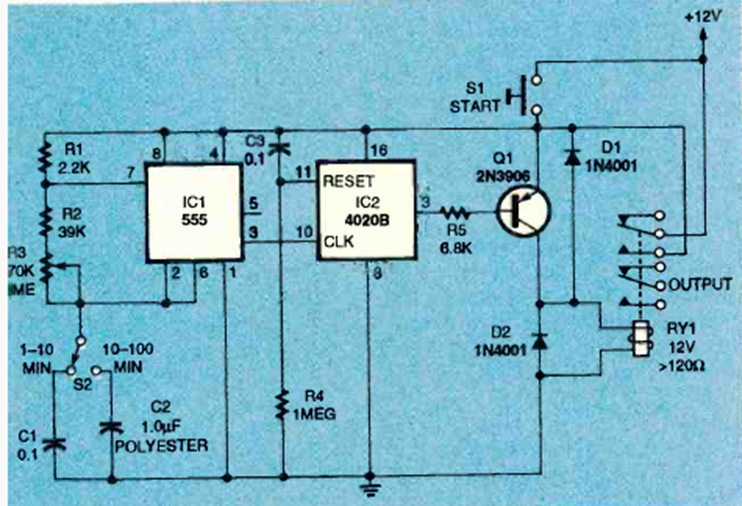

Using the 555 and 4020, this timer was found in the July 1994 Radio Electronics magazine. The relay is voltage-dependent, and the transistor is general purpose.
