DC to AC Converter (CB25574E)

Details: Written by: Newton C. Braga

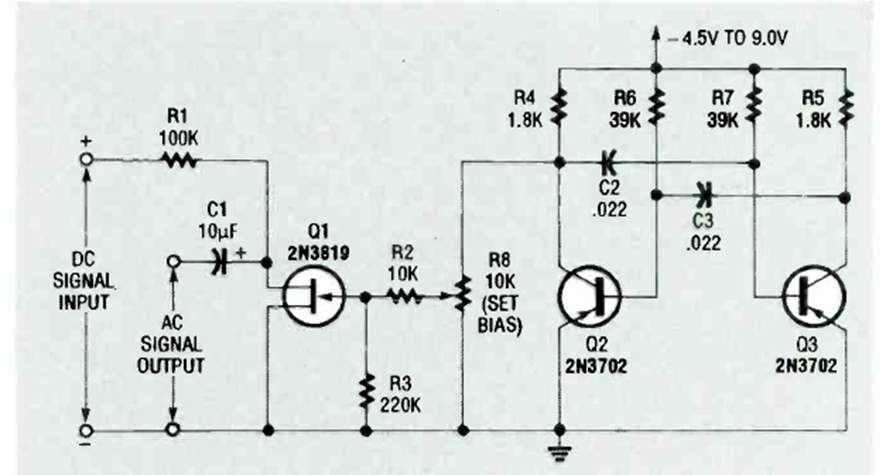

We found this circuit that converts a direct voltage into a proportional frequency signal. The circuit is from an Electronics Now from April 1993. The JFET can be of any type.
