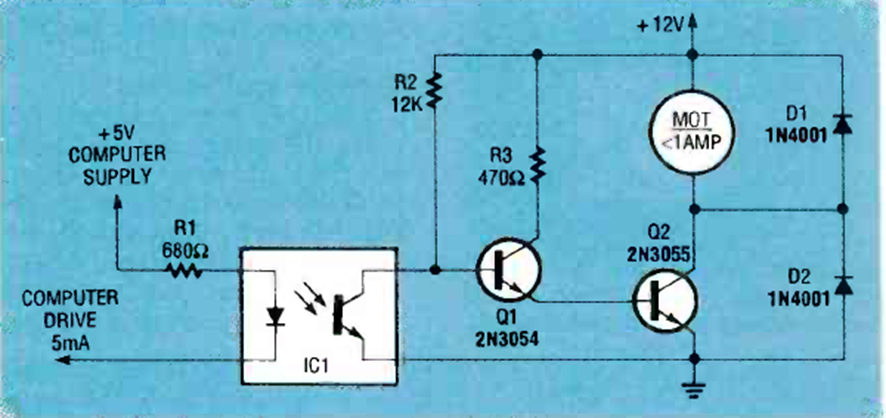

Shield for isolated motor (CB25494E)

Details: Written by: Newton C. Braga

This circuit is from a Radio Electronics from August 1992. The transistor used allows the control of motors up to about 5 A. It must be equipped with a heat sink.

| Clique na imagem para ampliar |
