RTD Temperature Meter (CB25463E)

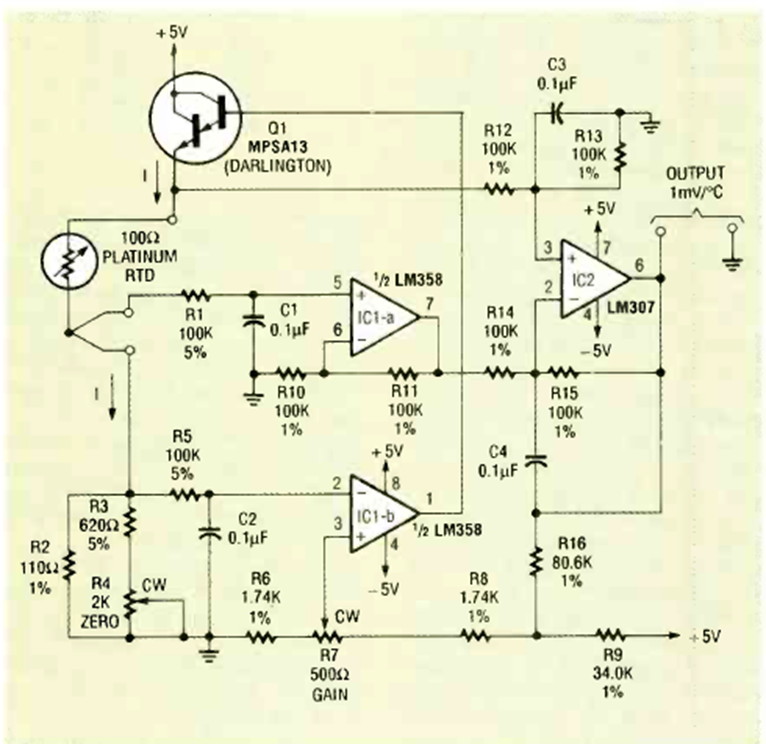

This circuit with RTD sensor was found in the Radio Electronics magazine of April 1992. At the output we have 1 mV for each degree Celsius.
