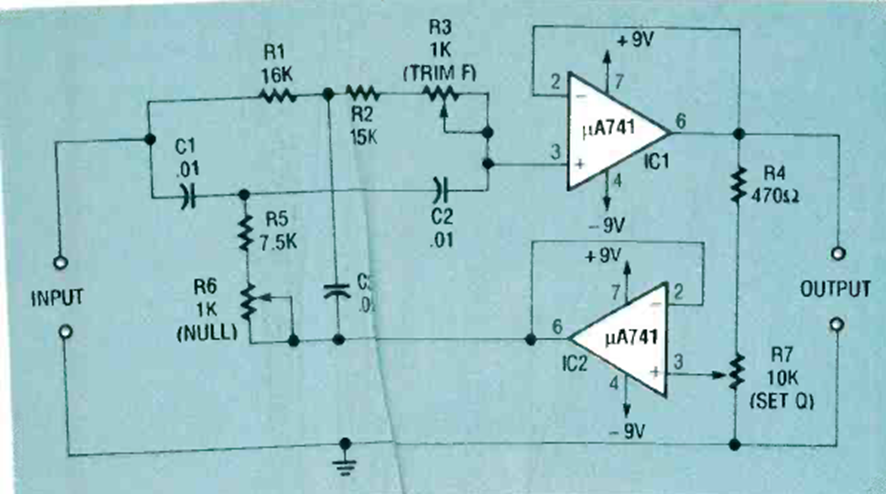

This filter, which rejects frequencies around 1 kHz, was found in the August 1993 Electronics Now magazine. The fine tuning is done at R3, and the source must be symmetrical.
