RMS to DC Converter (CB25352E)

Details: Written by: Newton C. Braga

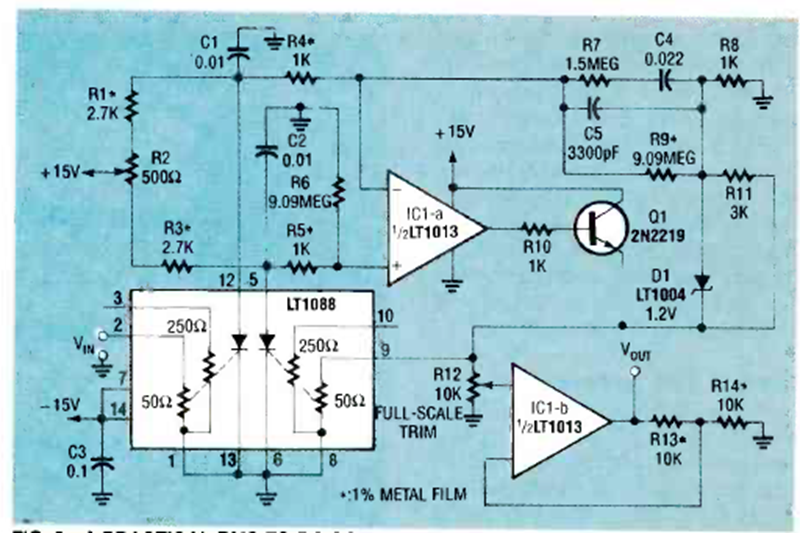

This circuit is from a Radio Electronics magazine from August 1990. The circuit uses components from the time and is suitable for measurements in alternating current.

| Clique na imagem para ampliar |
