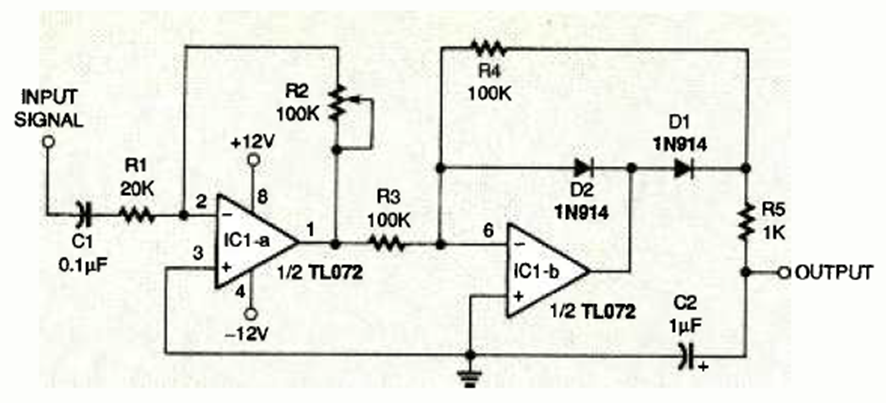

Signal Weighting Circuit (CB25965E)

Details: Written by: Newton C. Braga

This circuit can be used in a signal level indicator with LEDs. The circuit is from an Electronics Now dated January 1996. The power supply must be dual.
