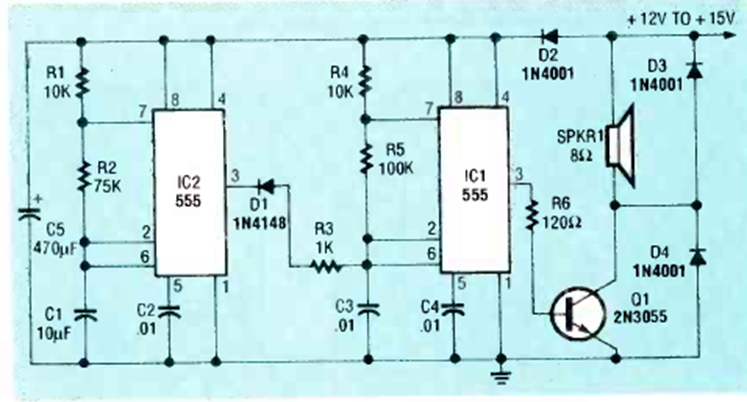

800 Hz Pulsed Tone Generator (CB25519E)

This circuit is recommended for alarm systems since it has a good output stage. The circuit is from a Radio Electronics magazine from October 1992.
