Tesla Coil (CB25779E)

Details: Written by: Newton C. Braga

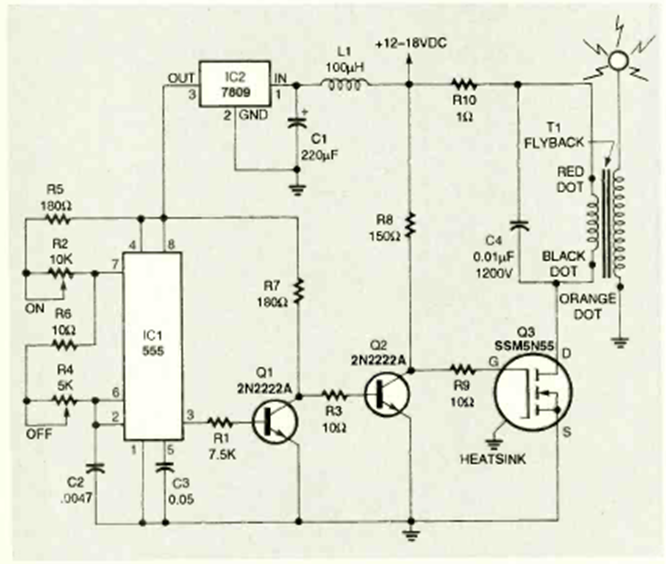

This Tesla coil was found in the November 1994 issue of Electronics Now magazine. T1 is a TV flyback transformer, but a car ignition coil can also be used.
