Egg Shaker for Incubator (CB25849E)

Details: Written by: Newton C. Braga

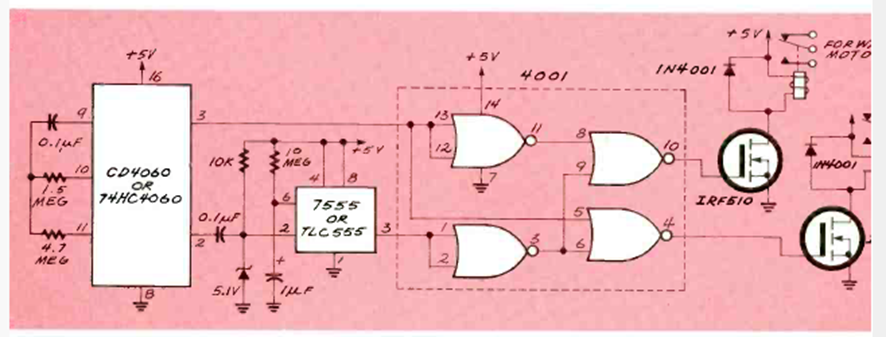

This circuit periodically reverses the rotation of a motor to change the position of eggs in an incubator. The circuit is from Electronics Now magazine, May 1995.

| Clique na imagem para ampliar |
